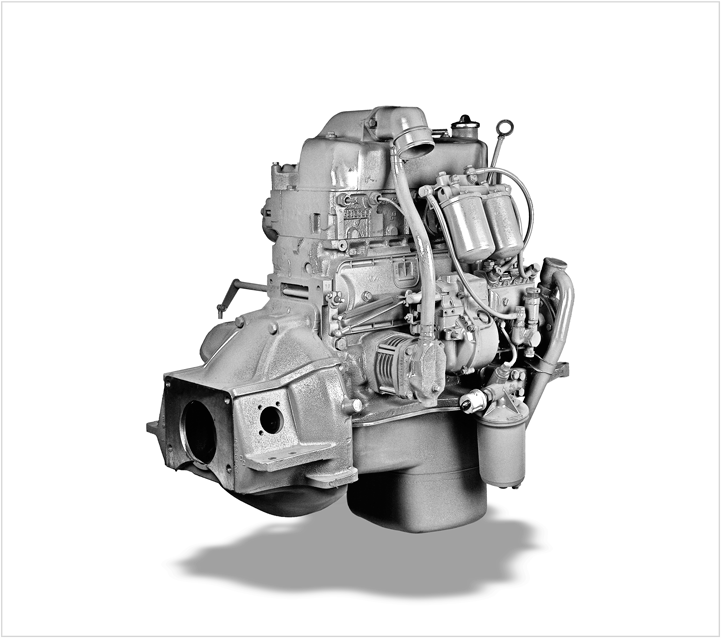

The cylinder block is completely cast iron with complete cylinder (without bushing). The oil filter, injector pump, fuel filter and oil gauge are located on the right side of the engine (flywheel front side), and the starter and manifold are located on the left side. A V-shaped belt connects the water pump and the fan to the engine. Also, the engine has an oil pan made of steel sheet or light cast material.

The cylinder head is made of cast iron and is common to all cylinders. The intake manifold and the cylinder head cover are all made of lightweight cast materials.

Crankshaft

The crankshaft is made of one-piece alloy steel by forging method and with very precise machining. The crankshaft of this engine is held in 5 points by three-layer bearings, with steel backs (with a polished bearing in the middle). Also, the crankshaft is balanced by special weights.

The connecting rods, like the crankshaft, are made of one piece by forging and with very precise machining and can be separated. The connecting rod is maintained by a three-layer bearing, with steel backs, and has separate bronze bushings for connecting to the piston.

The pistons are made of cast aluminum and consist of 4 compression and oil control rings, and the piston and connecting rod in this engine can be removed from the top.

The valves are put to work by a combination of bracket, push rod, and rocking arms. Cast iron guide bushings and heat-resistant valve seat rings guarantee a long service life and maintenance period.

By using a centrifugal pump, depending on the application of the engine, air-to-water or water-to-water radiators can be used. The water temperature can be controlled by using a thermostat.

Application

This engine can be used as a reliable source in industrial and commercial equipment, construction, agriculture, commercial vans, as well as a power generator source for all types of sea boats. According to the customer's request, this engine can be used for different purposes by being equipped with special tools.
